TR Centre and Rear Inner Panels

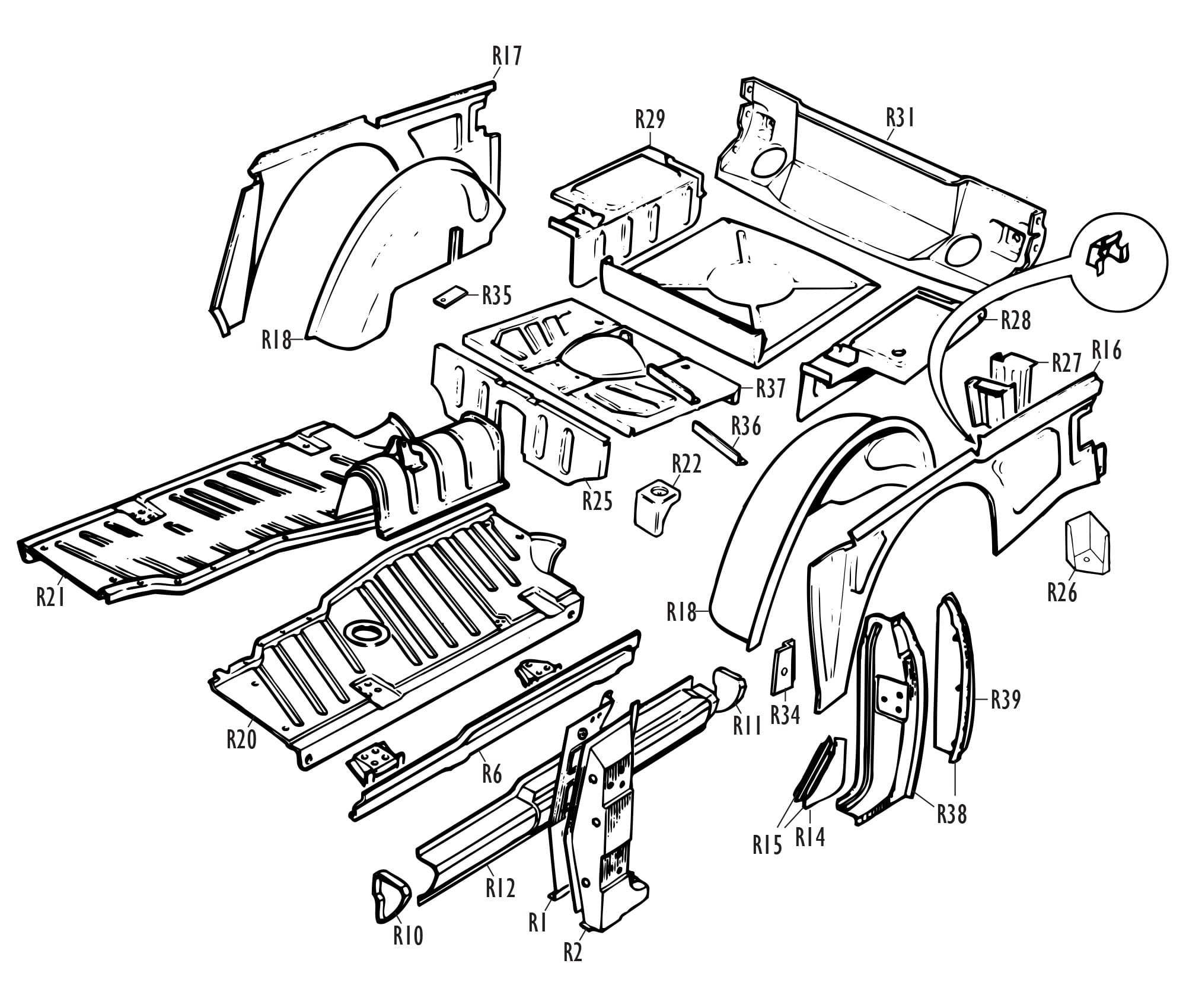

Back to Triumph Parts View Full Drawing
Triumph Parts - TR Centre & Rear Inner Panels
Triumph Parts - TR Centre & Rear Inner Panels

Select a specialist from the list below to find out more details

KeyItem CodeSRP
(Inc. VAT)
NameDescriptionApplication
R185034496A PostA Post, Inner, RHTR4-TR6, 1961-76 (all models)
R185034396A PostA Post, Inner, LHTR4-TR6, 1961-76 (all models)
R2813101126A PostA Post, Outer, Assembly, RHTR4-TR6, 1961-76 (all)
R2813100126A PostA Post, Outer, Assembly, LHTR4-TR250/TR5, 1961-69 (all models), TR6, 1969-73 (up to CR2911 and CF12500, pierced for one courtesy light switch, may be used on later models by adding second switch piercing)
R685012350.4SillSill, Inner, bare panel, RHTR4-TR6, 1961-76 (all models, without wiring tags)
R685012250.4SillSill, Inner, bare panel, LHTR4-TR6, 1961-76 (all models, without wiring tags)
R656480750.4SillSill, Inner, Assembly, RHTR4-TR6, 1961-76 (all models, includes wiring tags)
R690791258.8SillSill, Inner, Assembly, LHTR4-TR6, 1961-76 (all models, includes wiring tags)
R10750087NLAFiller PieceFiller Piece, Front, Sill Outer, RHTR4-TR6, 1961-76 (all)
R10750086NLAFiller PieceFiller Piece, Front, Sill Outer, LHTR4-TR6, 1961-76 (all)
R11750048NLAFiller PieceFiller Piece, Rear, Sill Outer, RHTR4-TR6, 1961-76 (all)
R11750047NLAFiller PieceFiller Piece, Rear, Sill Outer, LHTR4-TR6, 1961-76 (all)
R12850282114SillSill, Outer, RHTR4-TR6, 1961-76 (all)
R12850281114SillSill, Outer, LHTR4-TR6, 1961-76 (all)
R146115706.3GussetGusset, Sill to B PostTR4-TR4A, 1961-67 (all models, flat plate, use with 611571 reinforcement)
R1562171612.6GussetGusset, Sill to B Post, Assembly, RHTR250/TR5-TR6, 1967-76 (all)
R1562171512.6GussetGusset, Sill to B Post, Assembly, LHTR250/TR5-TR6, 1967-76 (all)
R17817564226.8Quarter PanelQuarter Panel, Rear, Inner, RHTR6, 1969-76 (all, features pocket for emissions equipment on later North American models)
R16815959226.8Quarter PanelQuarter Panel, Rear, Inner, LHTR6, 1969-76 (all)
R18850426NLAWheelarchWheelarch, Rear, RHTR4, 1961-65 (all models)
R18850425NLAWheelarchWheelarch, Rear, LHTR4, 1961-65 (all models)
R18815958NLAWheelarchWheelarch, Rear, RHTR250-TR5, 1967-69 (all models), TR6, 1969-76 (all models)
R18815957NLAWheelarchWheelarch, Rear, LHTR250-TR5, 1967-69 (all models), TR6, 1969-76 (all models)
R21904006226.8FloorFloor Panel, Main, RHTR4A-TR6, 1965-76 (all models), may be fitted to TR4 models by piercing the rear mounting holes
R20904005226.8FloorFloor Panel, Main, LHTR4A-TR6, 1965-76 (all models), may be fitted to TR4 models by piercing the rear mounting holes
R229500087.2BracketBracket, Body Mounting, Seat PanTR250/TR5-TR6, 1967-76 (all models)
R2585039794.8HeelboardHeelboard PanelTR4-TR6, 1961-76 (all models)
R2775002256.7BracketBracket, Body Mounting, Boot FloorTR4-TR6, 1961-76 (all)
R29910068154.8FloorSide Panel, Rear Floor, RHTR6, 1969-76 (all models)
R28910067154.8FloorSide Panel, Rear Floor, LHTR6, 1969-76 (all models)
R31908373174ValanceValance Panel, Rear, Inner, 'Body Rear Lower' TR6, 1969-76 (all models, also known as rear apron reinforcement)
R3462132922.8ReinforcementReinforcement, Seat Belt Mounting, RHTR250/TR5-TR6, 1967-76 (all)
R3462132822.8ReinforcementReinforcement, Seat Belt Mounting, LHTR250/TR5-TR6, 1967-76 (all)
R356183763.84BracketBracket, Tunnel Cover Rear SupportTR4-TR6, 1961-76 (all)
R366502714.2BracketBracket, Support, Rear Seat Squab LowerTR4-TR6, 1961-76 (all models, unhanded part replaces previous RH & LH versions)
Not illustrated850007210TonneauTonneau Side Upper LHTR4/4A/5
Not illustrated850008210TonneauTonneau Side Upper RHTR4/4A/5
Not illustrated850470162FloorRear Side Floor LHTR4-TR6, 1961-76 (all)
Not illustrated850471162FloorRear Side Floor RHTR4-TR6, 1961-76 (all)
